Ultra slim LED panel light

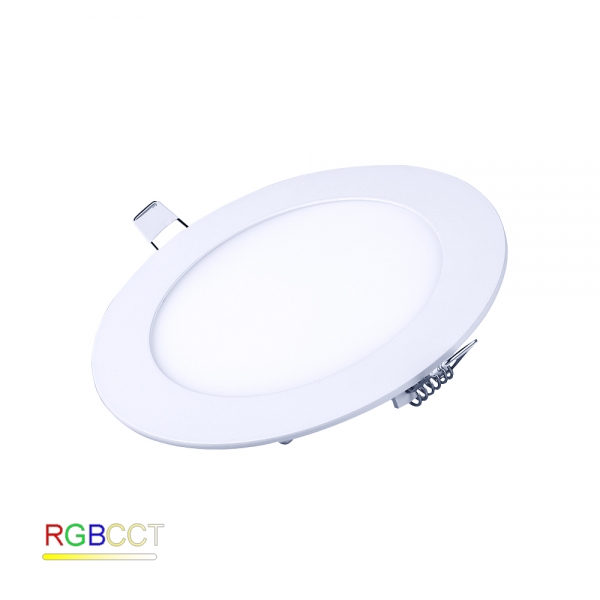

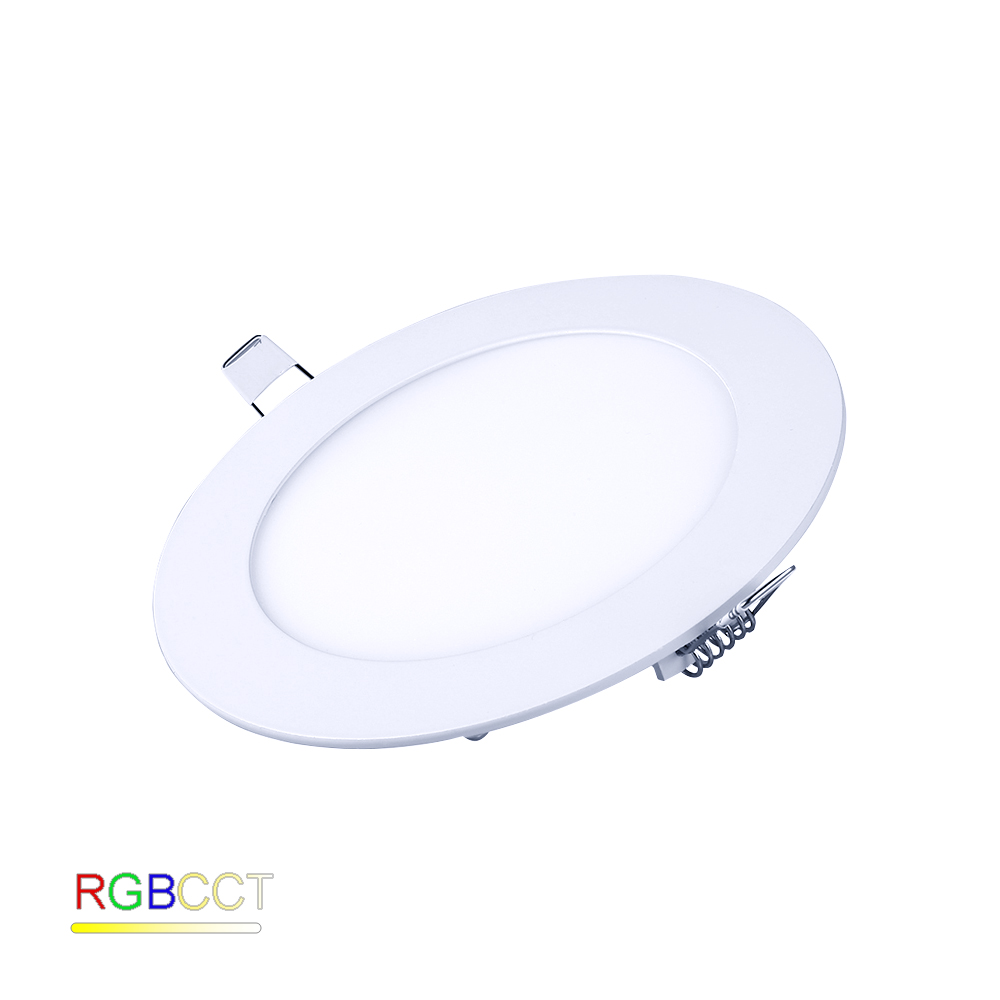

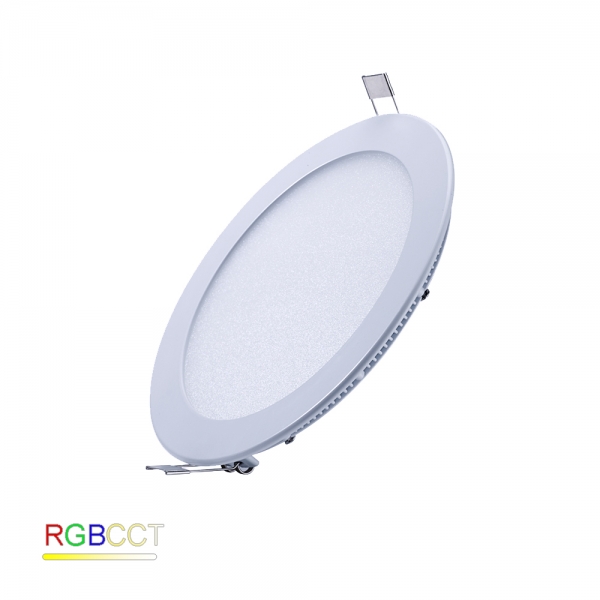

18W ROUND RGBCCT LED PANEL LIGHT


Model Number: YLL-P24C

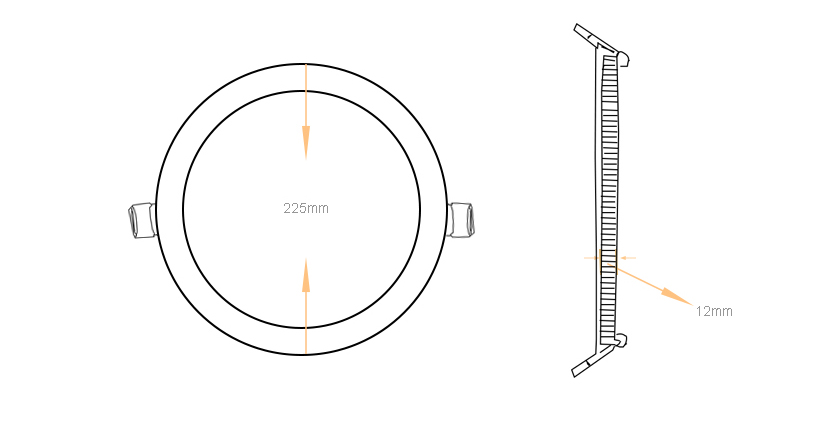

Size:¢225*12,hole size:205mm
Color:RGBCCT(2700-6500K)
Power:18W
Voltage: AC100-240V   DC24V
PF: >0.6
CRI: 90(White)
Luminous:1440lms
Light Efficiency:80lm/w
Bear Angle:140 degree
Material: Aluminum+PMMA LGP
Lifespan: 50000hours

    ADVANTAGE

    1.Controlled by 2 in 1 2.4G driver controller, easy for installation.
    2.Adjustable model of color change,brightness,speed.
    3.Multiple panels can work at the same mode at the the same time by control remote or APP.
    4.One panel reach not only RGB, also extra white tunable.

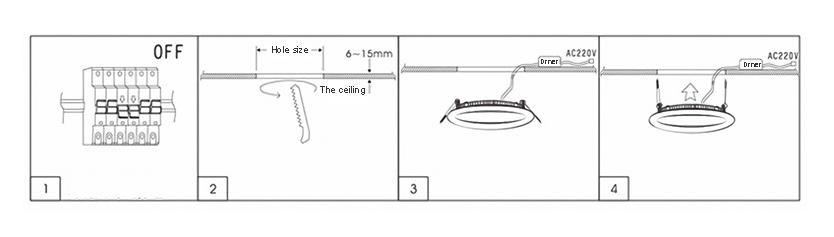

    INSTALLATION MANUAL

    1. Firstly, disconnect the power supply to ensure personal safety during operation.
    2. Open holes in the ceiling as required.
    3. Connect the lamp with power supply and AC circuit.
    4. Insert the lamp and lifting into the pre-opened hole.

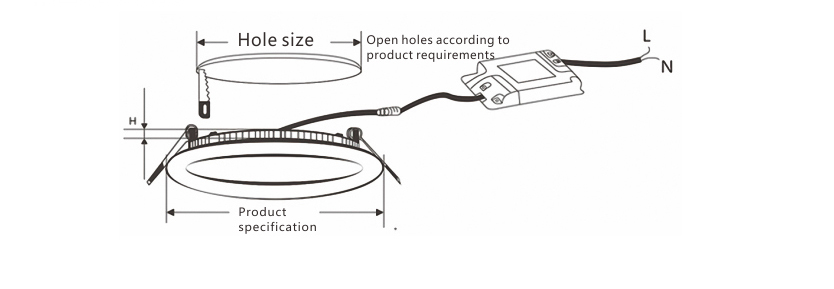

    WIRING DIAGRAM

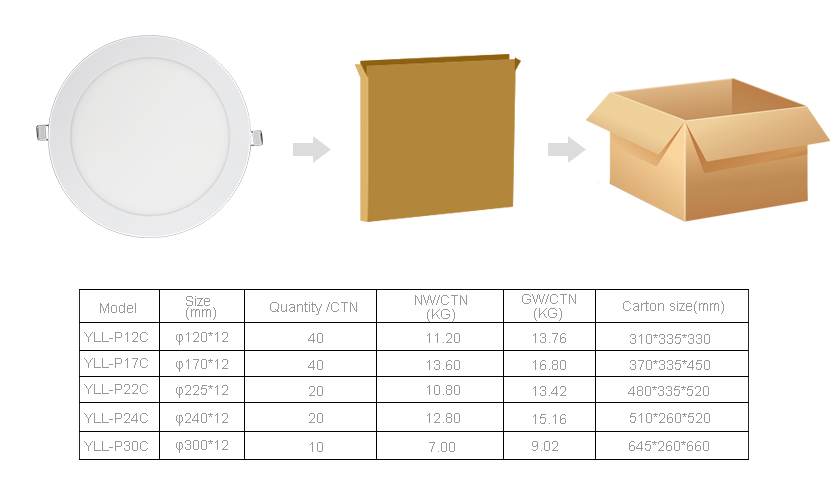

    PACKING DETAILS

    REMARK

    1. The working voltage of led panel light is DC24V,AC100V-240V,should be handled and installed by professional electrician.
    2. Please read the instructions carefully and keep the manual for further use.
    3. Please shut down the power before cleaning and maintaining. Do not use liquid or corrosive gas detergents to wipe the housing.
    4. Do not try to fix led panel light by yourself in order to avoid getting an electric shock or other harm.
    5. Avoid the rain and strong mechanical vibration in the process of transportation.
    6. The function of controller, please refer the instruction manual.
