Surface LED panel light

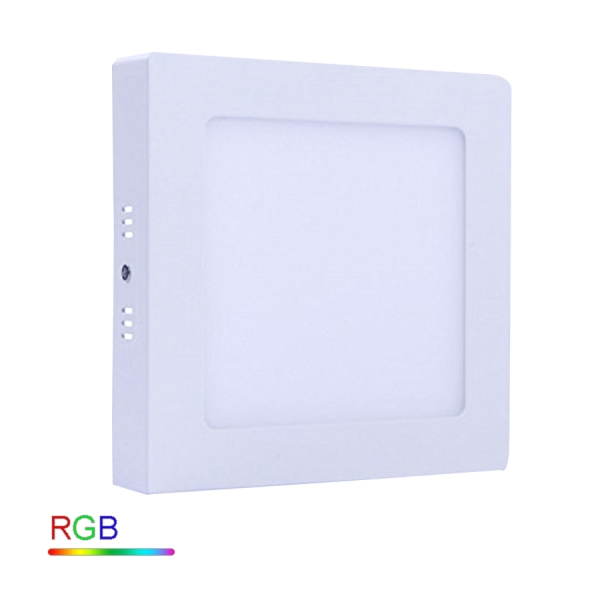

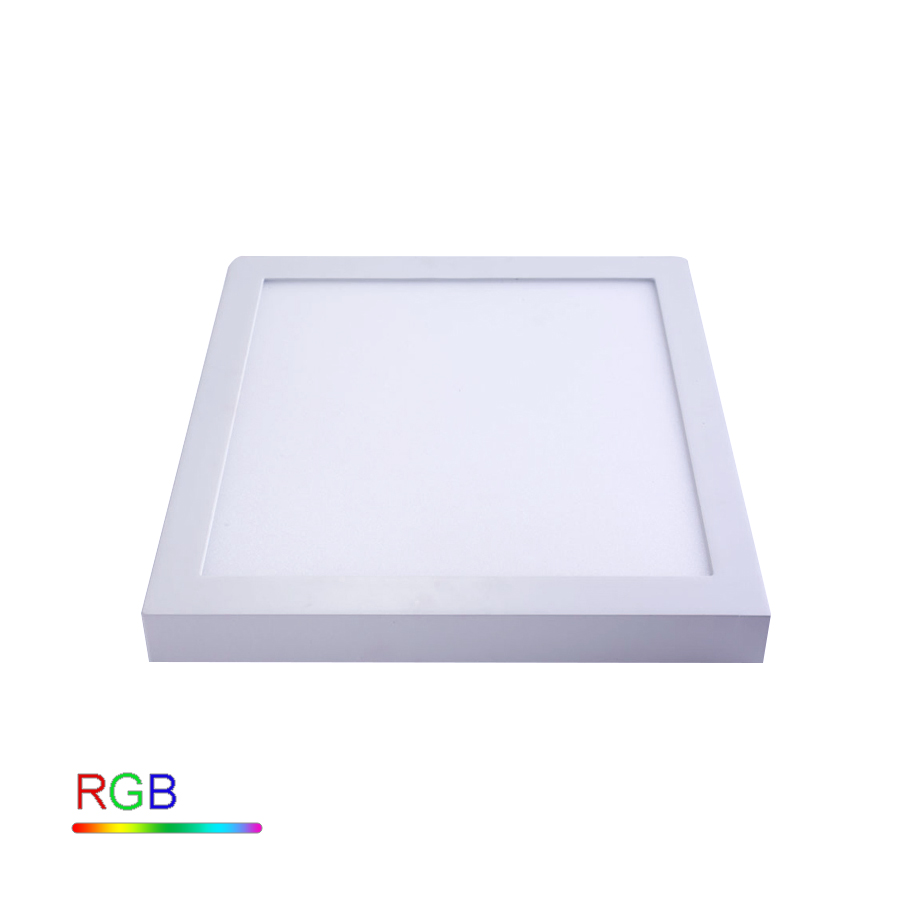

18W SQUARE RGB LED PANEL LIGH


Model Number: YLL-PI04

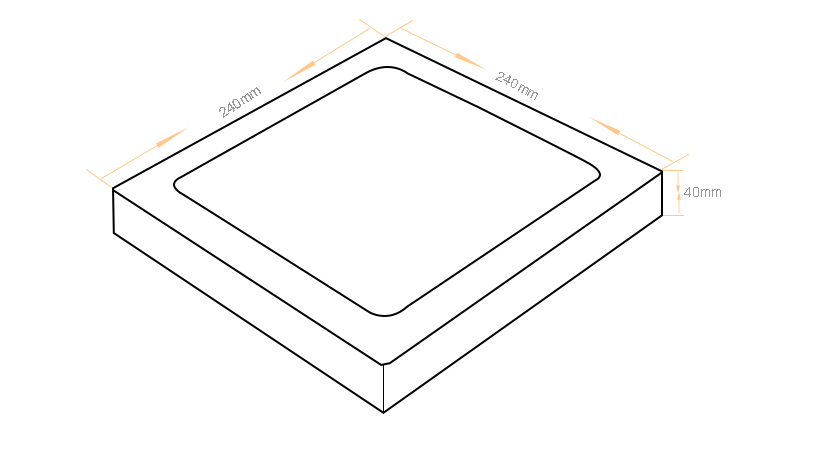

Size:240*240*40MM
Color:RGB
Power:18W
Voltage: AC100-240V   DC24V
PF: >0.6
Bear Angle:120 degree
Material: Aluminum+PMMA LGP
Lifespan: 50000hours

    ADVANTAGE

    1.Branded LEDs, luminance uniformity.
    2.Anti-light leakage structure.Unique honeycomb design good for dissipation.
    3.Constant voltage Flicker free 2-1 power supply.
    4. 2.4G RF controller & Remote (can control multiple groups of panel within 30 meters).

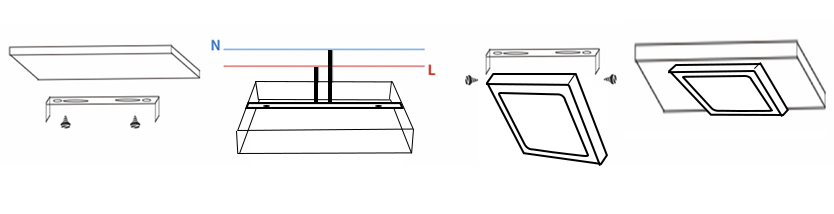

    INSTALLATION MANUAL

    1. Fix the bracket on the ceiling and reinforce it with screws.
    2. Power is fixed at the bottom of the lamp to connect the two power cables with 220V power cord L/N.
    3. Fix the lamp body, and then fix the lamp body with screws.
    4. After installation, turn on the light and turn on the power.

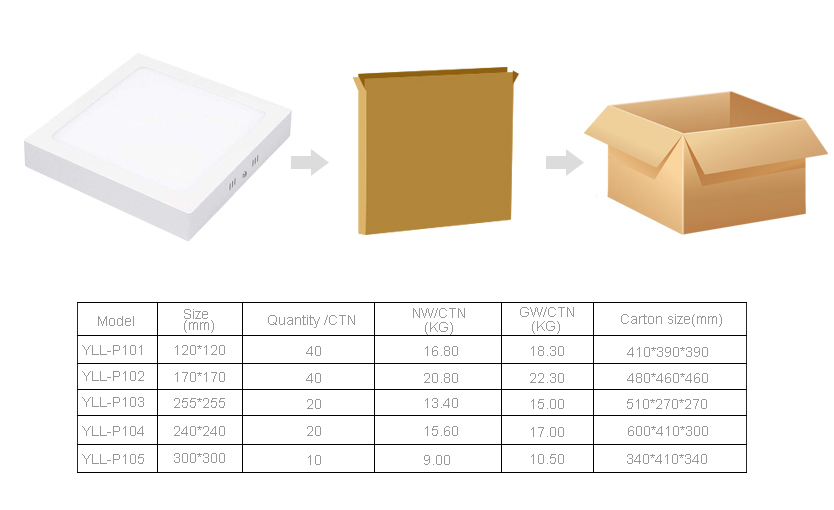

    PACKING DETAILS

    REMARK

    1. The working voltage of led panel?is DC24V,AC100V-240V,should be handled and installed by professional electrician.
    2. Please read the instructions carefully and keep the manual for further use.
    3. Please shut down the power before cleaning and maintaining. Do not use liquid or corrosive gas detergents to wipe the housing.
    4. Do not try to fix led panel?by yourself in order to avoid getting an electric shock or other harm.
    5. Avoid the rain and strong mechanical vibration in the process of transportation.
    6. The function of controller, please refer the instruction manual.
