Surface LED panel light

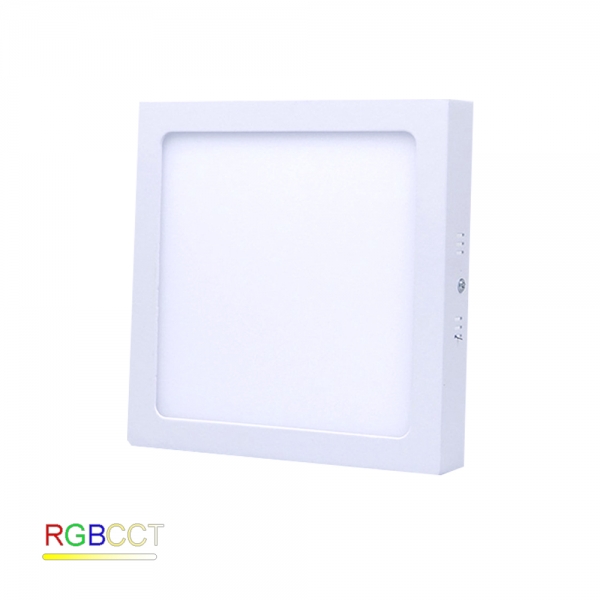

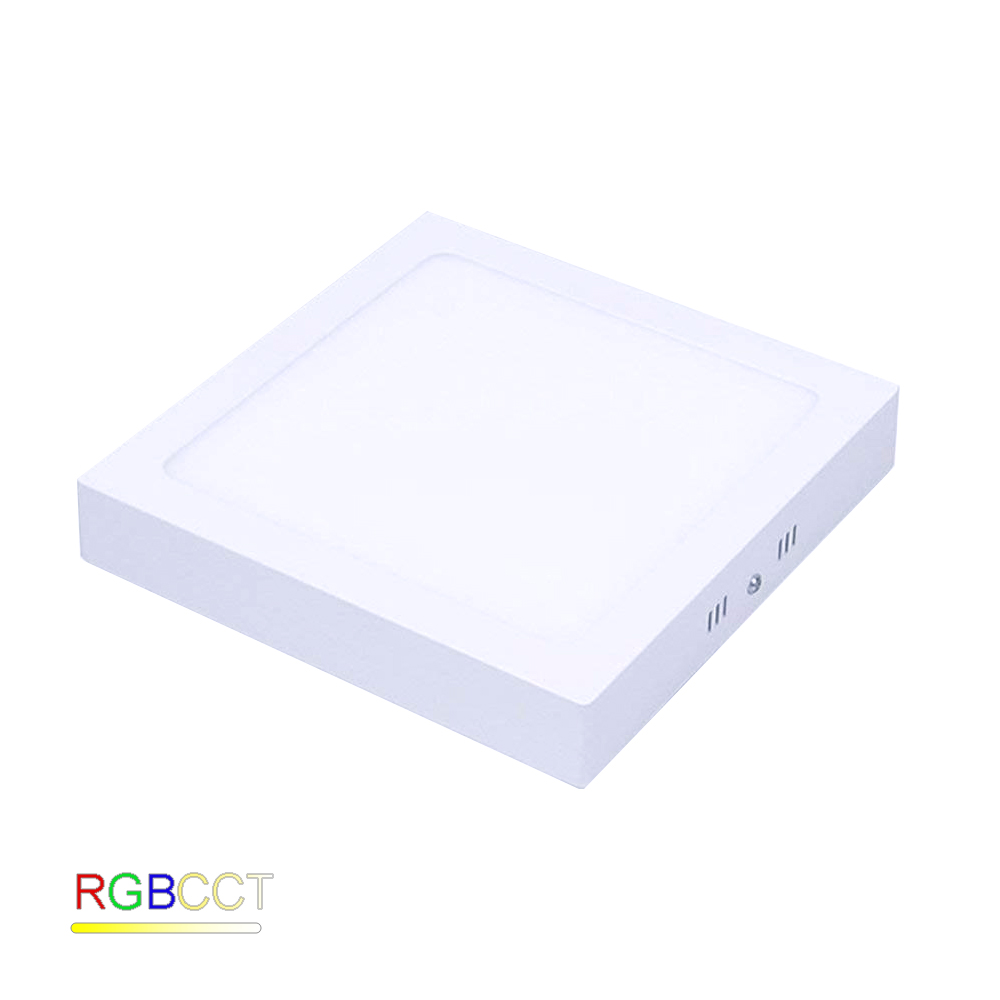

30W SQUARE RGBCCT LED PANEL LIGHT


Model Number: YLL-PI25

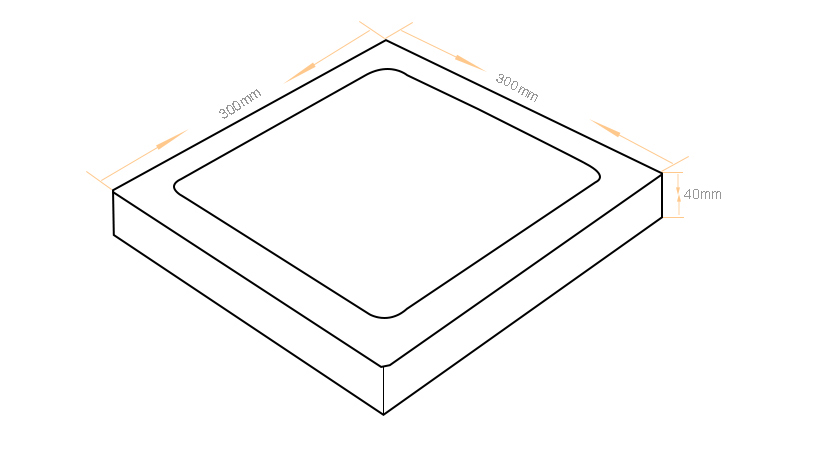

Size:300*300*40MM
Color:RGBCCT
Power:24W
Voltage: AC100-240V   DC24V
PF: >0.6
CRI: 90(White)
Luminous:1600lms
Light Efficiency:65lm/w
Bear Angle:120 degree
Material: Aluminum+PMMA LGP
Lifespan: 50000hours

    ADVANTAGE

    1.Controlled by 2 in 1 2.4G driver controller, easy for installation.
    2.Adjustable model of color change,brightness,speed.
    3.Multiple panels can work at the same mode at the the same time by control remote or APP.
    4.One panel reach not only RGB, also extra white tunable.

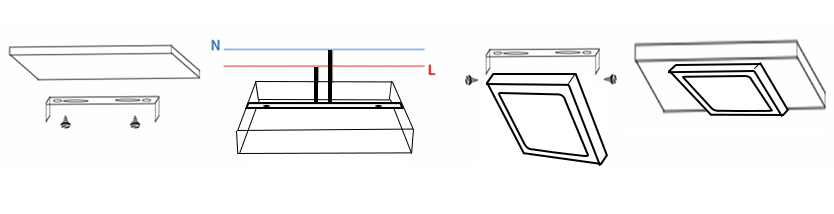

    INSTALLATION MANUAL

    1. Fix the bracket on the ceiling and reinforce it with screws.
    2. Power is fixed at the bottom of the lamp to connect the two power cables with 220V power cord L/N.
    3. Fix the lamp body, and then fix the lamp body with screws.
    4. After installation, turn on the light and turn on the power.

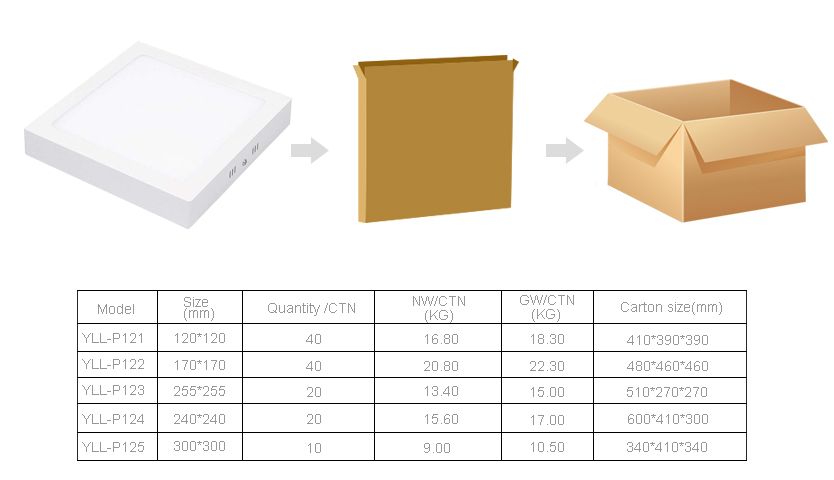

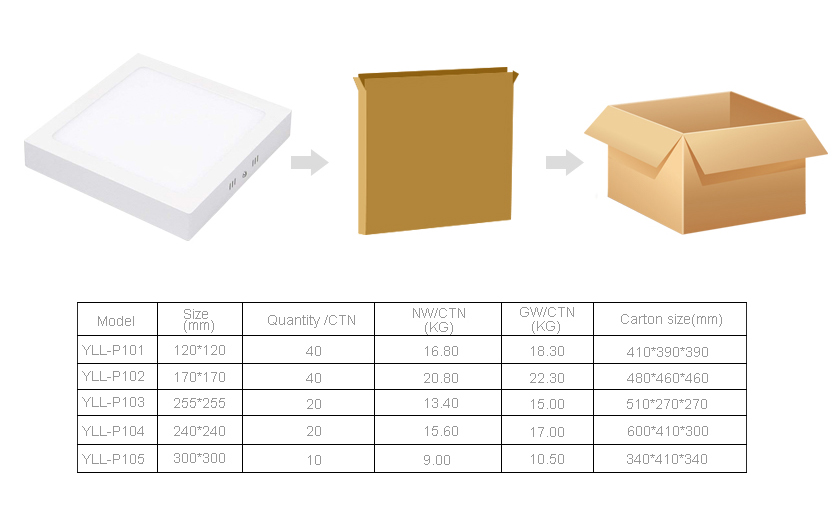

    PACKING DETAILS

    REMARK

    1. The working voltage of led panel?is DC24V,AC100V-240V,should be handled and installed by professional electrician.
    2. Please read the instructions carefully and keep the manual for further use.
    3. Please shut down the power before cleaning and maintaining. Do not use liquid or corrosive gas detergents to wipe the housing.
    4. Do not try to fix led panel?by yourself in order to avoid getting an electric shock or other harm.
    5. Avoid the rain and strong mechanical vibration in the process of transportation.
    6. The function of controller, please refer the instruction manual.
