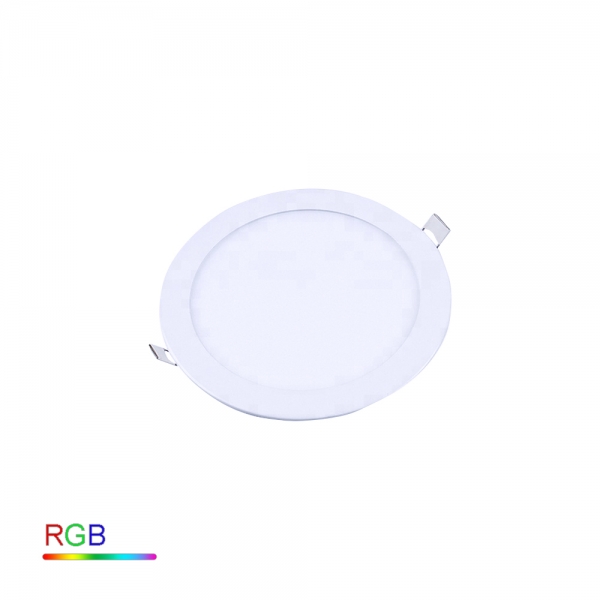

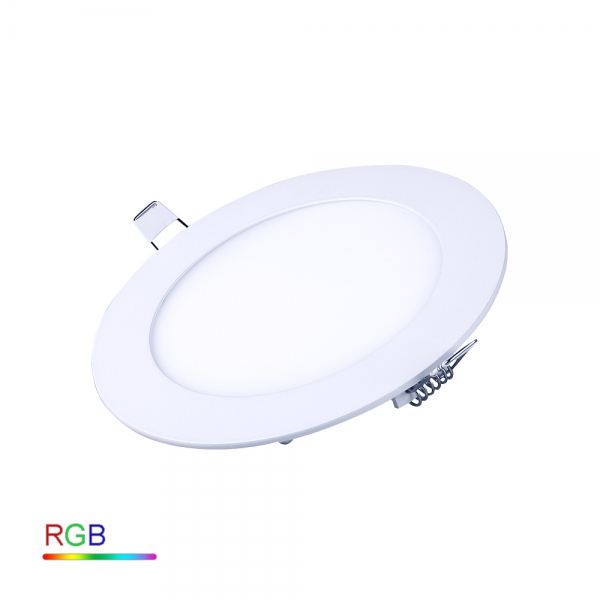

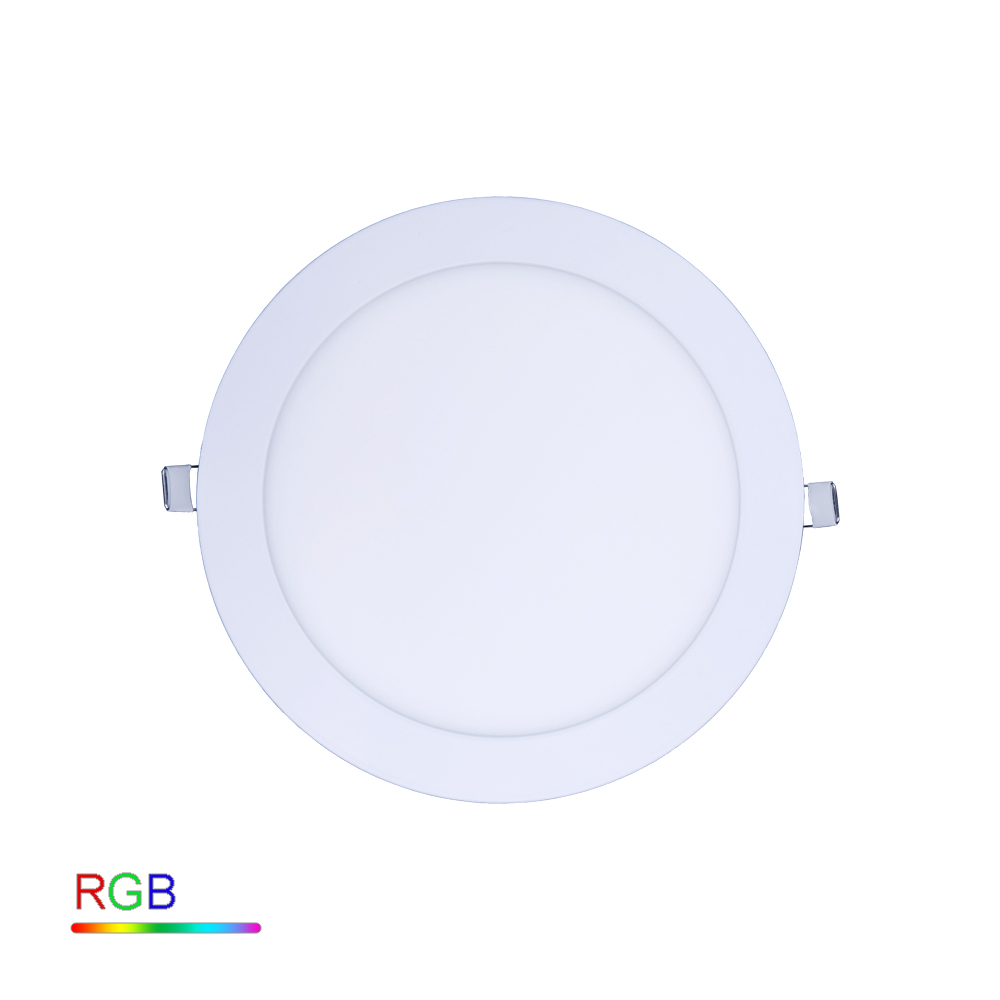

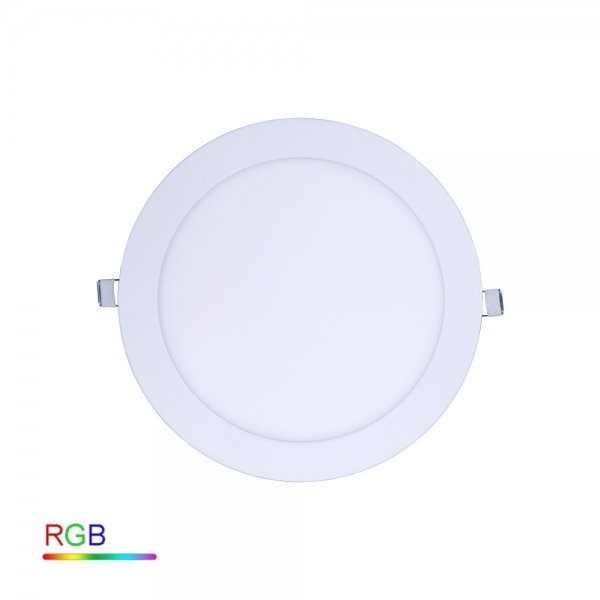

ADVANTAGE
1.RGBW color changeable & dimmable, white color can be 3000K,4000K,6000K.
2.Anti-light leakage structure.Unique honeycomb design good for dissipation.
3.Constant voltage Flicker free 2-1 power supply.
4. 2.4G RF controller & Remote (can control multiple groups of panel within 30 meters).
.jpg)

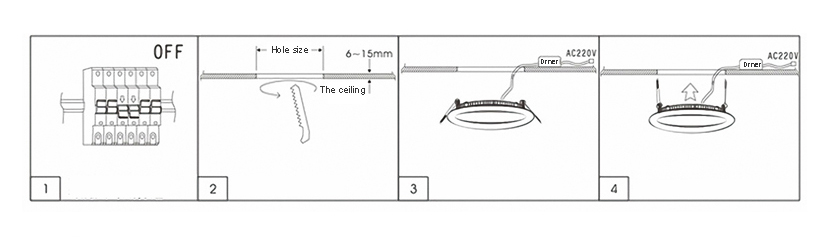

INSTALLATION MANUAL
INSTALLATION MANUAL
1. Firstly, disconnect the power supply to ensure personal safety during operation.
2. Open holes in the ceiling as required.
3. Connect the lamp with power supply and AC circuit.
4. Insert the lamp and lifting into the pre-opened hole.
.jpg)

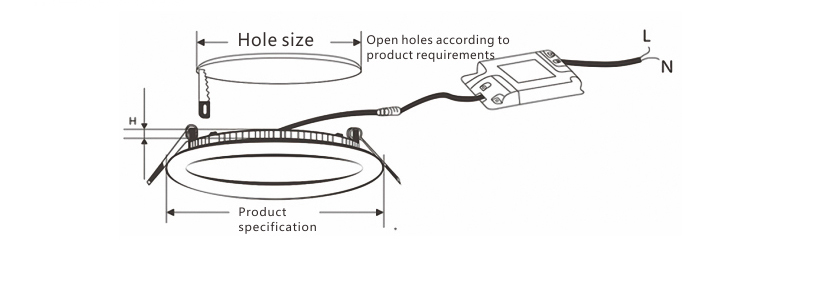

WIRING DIAGRAM
.jpg)

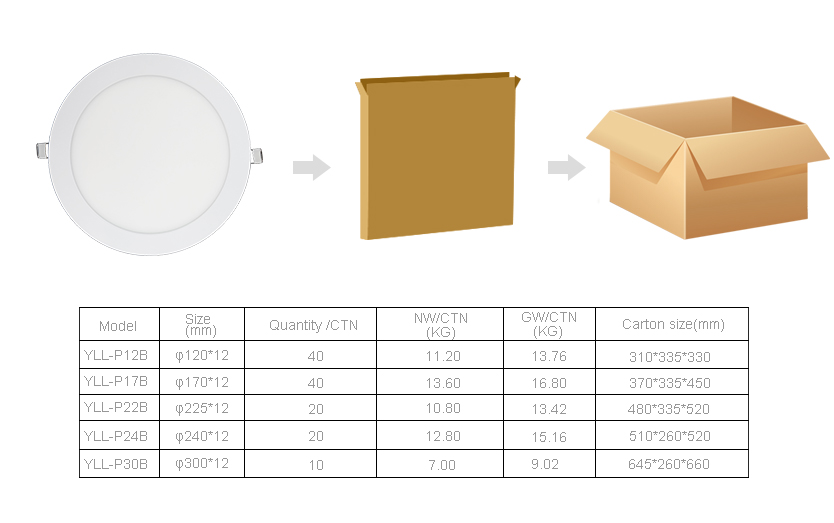

PACKING DETAILS
.jpg)
REMARK
WIRING DIAGRAM
PACKING DETAILS
REMARK
1. The working voltage of led panel light is DC24V,AC100V-240V,should be handled and installed by professional electrician.
2. Please read the instructions carefully and keep the manual for further use.
3. Please shut down the power before cleaning and maintaining. Do not use liquid or corrosive gas detergents to wipe the housing.
4. Do not try to fix led panel light by yourself in order to avoid getting an electric shock or other harm.
5. Avoid the rain and strong mechanical vibration in the process of transportation.
6. The function of controller, please refer the instruction manual.
