Smart LED panel light

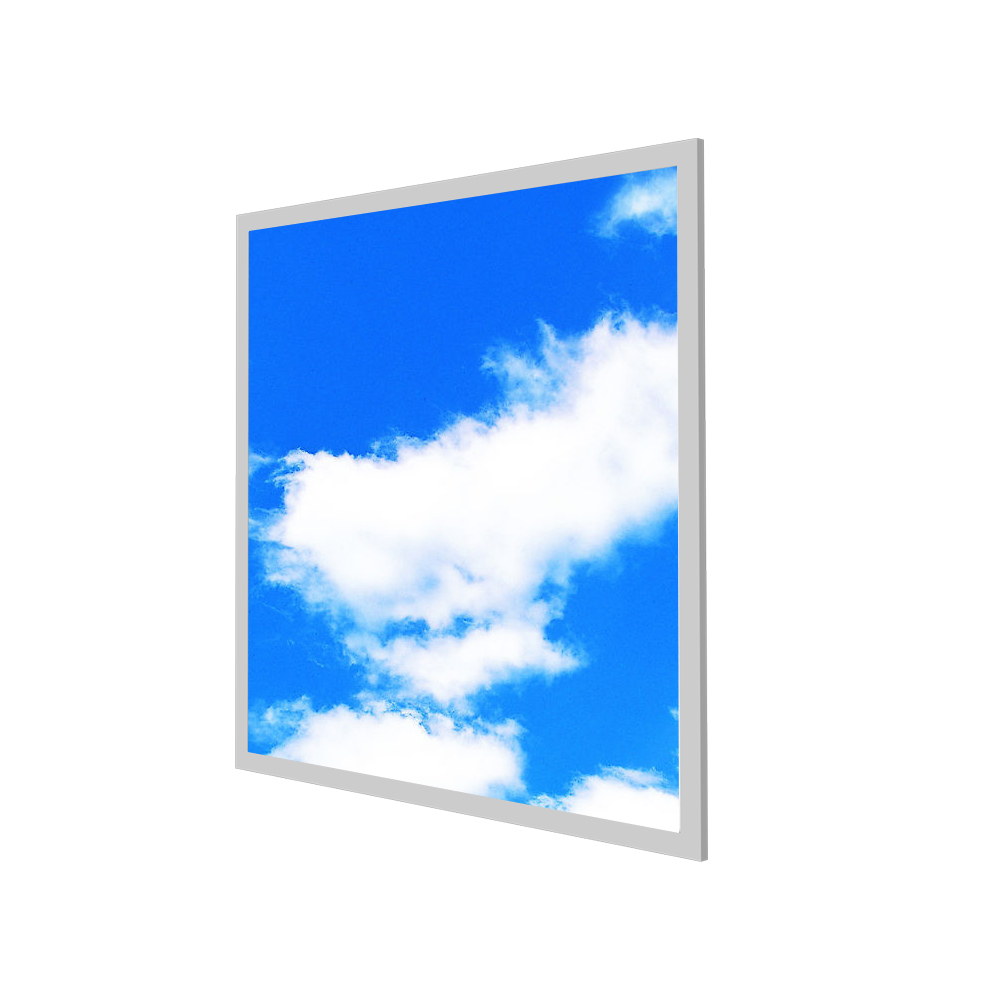

FRAMELESS BLUE SKY LED PANEL LIGHT


Model Number: YLL-BS10

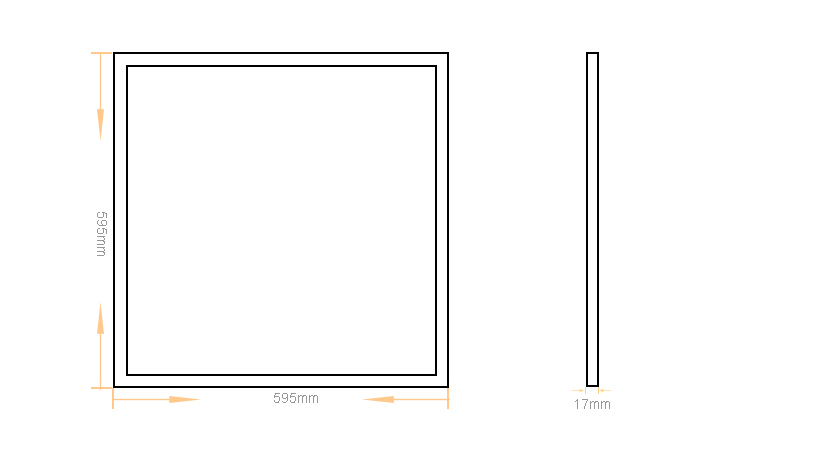

Size:595*595*17mm
Color:6000K
Power:36W
Voltage: AC100-240V
PF: >0.9
CRI: 90
Luminous:2200lms
Light Efficiency:60lm/w
Bear Angle:120 degree
Material: Aluminum+PMMA LGP
Lifespan: 50000hours

    ADVANTAGE

     1.Elegant appearance design, modern style.
     2. Reflective area is larger with frameless design.
     3.Innovated structure heating dissipation design.
     4.Easy to install. Ideal to be built into system ceilings, offices, and can be used as a suspended light fixture.

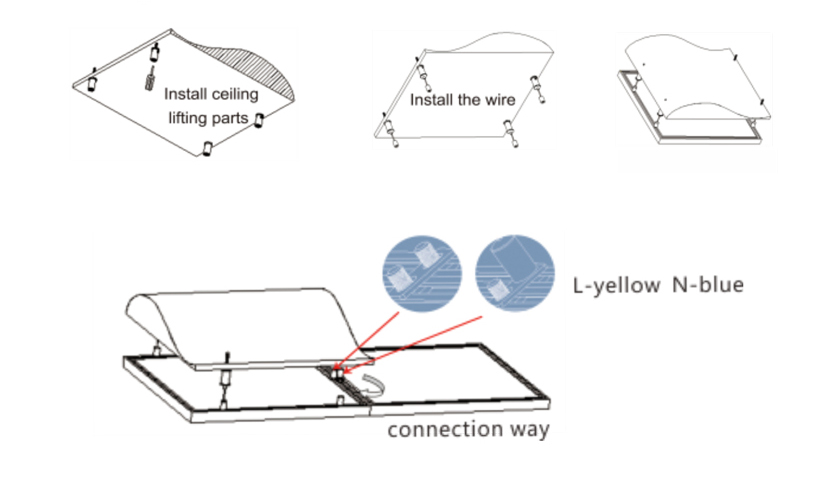

    INSTALLATION MANUAL

    1.Formulate the installation location, open the hole for the power cord and rubber in the ceiling, and plug the rubber into the opened hole.
    2.Use the screw to fix the suspending fixture into the rubber, then screw the stud to the suspending kceiling fixture.
    3.Direct the nut of suspending wire to the stud on the back of LED panel light, slide the stud to the right position, and then screwtight of the nut to the stud. And you can adjust the suspending wire length to make the panel at the suitable position.
    4.The electric wire connect with the led driver L/N wires, and the output of led driver plug in with the led panel light.
    5.Repeat above steps to finish the other panels installation.
    6.Turn on the light.

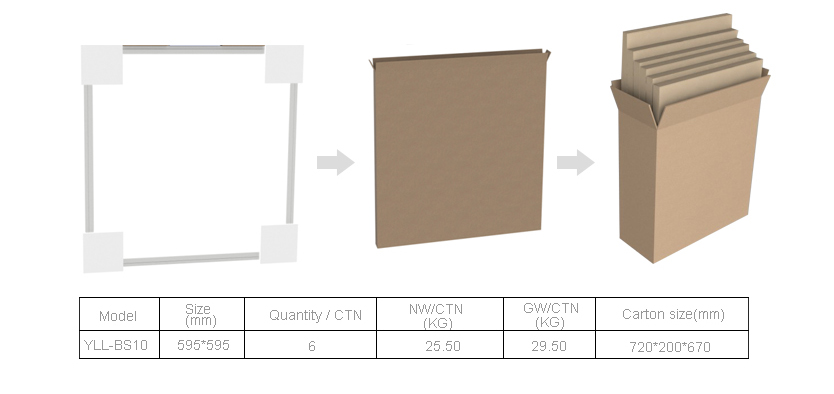

    PACKING DETAILS

    REMARK
    1. The working voltage of led panel light is DC36-42V,AC100V-240V,should be handled and installed by professional electrician.
    2. Please read the instructions carefully and keep the manual for further use.
    3. Please shut down the power before cleaning and maintaining. Do not use liquid or corrosive gas detergents to wipe the housing.
    4. Do not try to fix led panel light by yourself in order to avoid getting an electric shock or other harm.
    5. Avoid the rain and strong mechanical vibration in the process of transportation.
